Amplificator Onkyo A 10 + Tuner Onkyo T 9

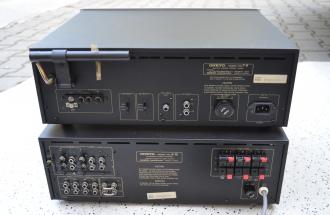

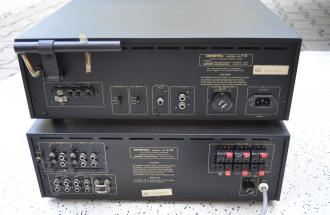

Amplificator Onkyo A 10 + Tuner Onkyo T 9: 2 trafuri, 2 radiatoare, 8 finali, 7 intrari, 6 iesiri, 4-16 ohmi, 620W coonsum, made in Japan, reglaje bass, inalte, balance, reglaje bass/inalte pe frecventa, loudness, muting, phono selector, high cut, subsonic, butonul de balance nu e cel original, tuner cu scala iluminata, , vu metre signal tuning, noise filter, butonul de output level nu este ccel original, poze reale.

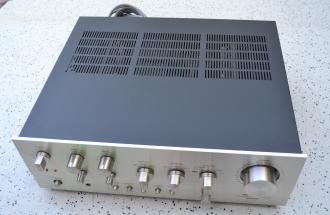

ONkyo A-10
Stereo Integrated Amplifier (1979)

Specifications
Power output: 85 watts per channel into 8Ω (stereo)

Frequency response: 10Hz to 50kHz

Total harmonic distortion: 0.08%

Damping factor: 50

Input sensitivity: 0.1mV (MC), 2.5mV (MM), 150mV (line)

Signal to noise ratio: 68dB (MC), 78dB (MM), 90dB (line)

Output: 150mV (line), 1.5V (Pre out)

Semiconductors: 65 x transistors, 26 x diodes

Dimensions: 444 x 159 x 401mm

Weight: 18kg

Onkyo T-9
Quartz Locked AM/FM Stereo Tuner (1979)

Specifications
Type: Mono/Stereo Tuner

Tuning Bands: FM, MW

Tuning Scale: Analogue

FM Tuning Range: 87.5 to 108 MHz

MW Tuning Range: 530 to 1605 kHz

Sensitivity: 1.7uV (FM), 25uV (MW)

Signal to Noise Ratio: 65dB (FM), 45dB (MW)

Distortion: 0.3% (FM), 0.8% (MW)

Frequency response: 30Hz to 15kHz (FM)

Output: 750mV (FM), 250mV (MW)

Semiconductors: 1 x FET, 7 x IC, 46 x transistors, 38 x diodes

Dimensions: 444 x 159 x 380mm

Weight: 7kg
